Portable small palm oil production line for sale

In order to simplify the technical requirements for palm oil production line installation and meet the budget of African customers, Henan Glory Company's latest designed portable small palm oil production line is on sale. The following is relevant information about the portable small palm oil production line!

1. Key Components of the Portable Small Palm Oil Production Line:

The portable small palm oil production line consist of palm oil production machines that can handle various stages of palm oil extraction, such as:

(1) Sterilization machine: The portable small palm oil production line uses steaming and sterilization, which requires three sterilization tanks to sterilize the palm fruit before processing and one water tank to provide water and heat for the entire palm oil production line.

(2) Threshing machine: The portable small palm oil production line uses a drum type palm fruit threshing machine to remove the palm fruits from the fruit bunches.

(3) Digesting machine: As the height of the vertical digesting tank is too high, the portable small palm oil production line uses a machine that has the same digesting function after being modified from a double screw palm oil pressing machine to digest the palm fruit.

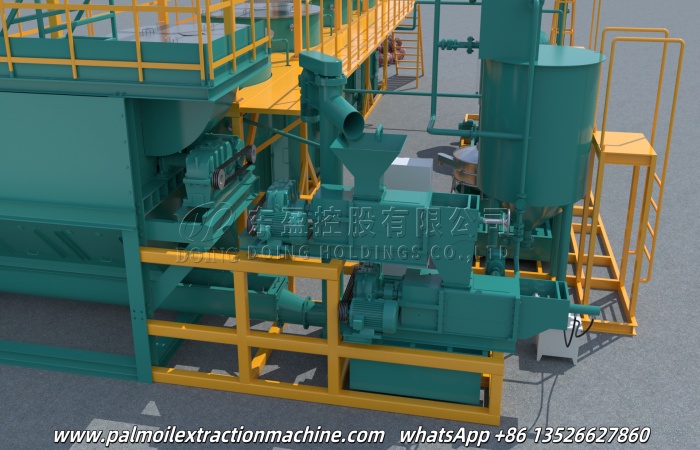

Digesting and pressing machines of the portable small palm oil production line

(4) Pressing machine: The portable small palm oil production line uses a 1tph double screw palm oil pressing machine, which has a low residual oil rate and is easy to operate.

(5) Filtration machine: The portable small palm oil production line uses filtration machines including a sand settling tank, a rotary vibrating screen and a plate and frame filter.

(6) Drying machine: The portable small palm oil production line adopts a vacuum drying system, with internal resistance wire for electric heating and water jet pump for vacuuming, which can prevent the oil from being oxidized at high temperature.

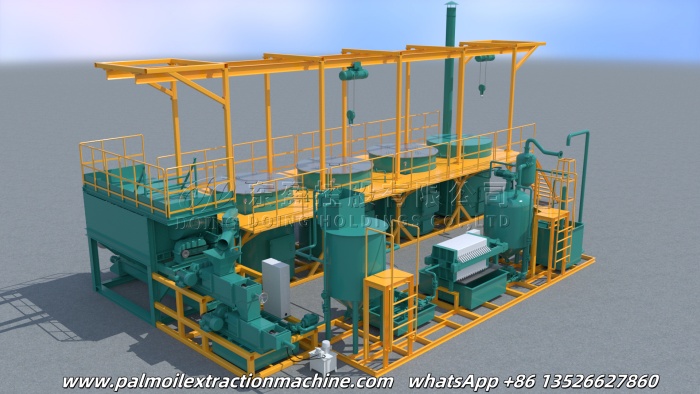

The complete portable small palm oil production line

2. Key Features of the Portable Small Palm Oil Production Line:

(1) Compact and mobile design: Since the portable small palm oil production line is in the frame as a whole, not only is it easy to install, but it is also easy to move to different locations.

(2) Energy-efficient: The portable small palm oil production line can process 1 ton of fresh palm fruit bunches per hour, which is very suitable for small enterprises and small-scale palm oil producers. So it is designed with lower energy consumption in mind.

(3) Cost-effective: The portable small palm oil production line is designed for palm oil processors with limited funds, so the initial investment tends to be lower compared to large-scale industrial systems.

3. Where to Buy the Portable Small Palm Oil Production Line:

You can find Henan Glory Company’s portable small palm oil production line from a variety of channels, including:

(1) Online contact: Whatsapp/Wechat: +86 13526627860.

(2) Company's website: https://www.palmoilextractionmachine.com

(3) Address-in-China: Jinshui District, Zhengzhou City, Henan Province, China.

(3) Branch office in Nigeria: 19B Kudirat Abiola Way Olusosun Bus stop, Ikeja, Lagos, Nigeria.

4.Estimated Cost of the Portable Small Palm Oil Production Line:

The cost of the portable small palm oil production line varies widely based on its features, specifications and transportation method. Generally, small palm oil production line can range from $950 to $14000 USD, depending on the configuration and capacity.

The above is the relevant information of the portable small palm oil production line. If you want to learn more about the portable small palm oil production line or palm oil production machines, please feel free to contact Henan Glory Company!
