Detailed analysis of palm kernel cracker and shell separator

In the palm oil industry, cracking and separating palm kernel and kernel shell quickly are crucial steps for maximizing the yield and quality of palm kernel oil. Henan Glory Oils & Fats Engineering Co., Ltd, with its expertise in palm kernel oil processing machinery, has manufactured the most advanced palm kernel cracker and shell separator to crack and separate palm kernel and kernel shell quickly. The following is a detailed analysis of palm kernel cracker and shell separator.

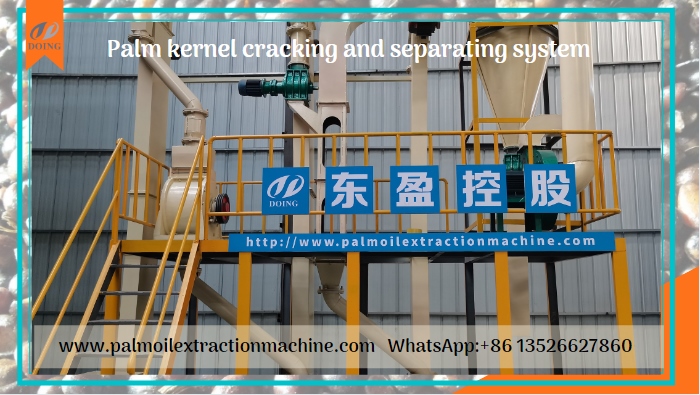

Palm kernel cracker and shell separator photo

Palm kernel cracker and shell separator system consists of the following five main parts. Each part plays an important role in the palm kernel cracking and shell separating process.

1. Magnetic Separator:

First of all, the palm kernels need to enter the magnetic separator to use the principle of magnetic adsorption to remove the metal impurities in the palm kernels to avoid the shelling machine is damaged, in order to achieve a better shelling effect.

2. Palm Kernel Grading Machine:

Then, the palm kernels after impurities are removed need to enter the palm kernel grading machine. This process can be used to separate palm kernels of different sizes and send palm kernels of similar sizes to the same cracker. Its working principle is to grade the palm kernels through the size of the machine surface and divide them into two crackers. The volume of palm kernels in the same cracker is similar, avoiding the situation where the palm kernel diameter is too small to be shelled or the palm kernel diameter is too large to cause the kernel to be broken and incomplete. This helps to increase the subsequent separation speed of palm kernel shells and the final yield.

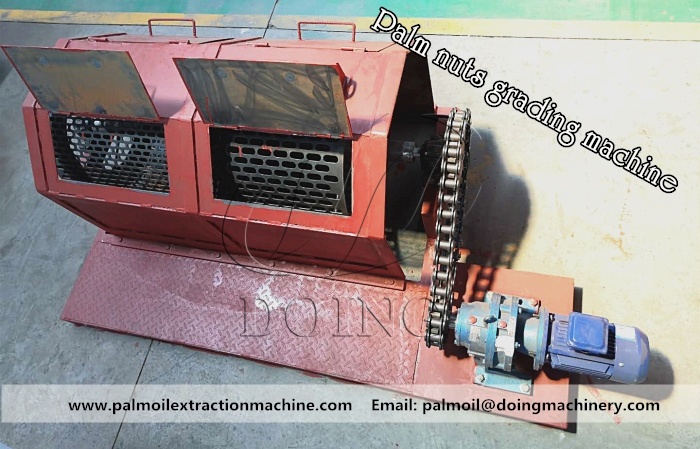

Palm kernel grading machine photo

3.Cracker:

After palm kernels of different sizes enter the corresponding crackers, the gap between the beating rod and the inner wall teeth of the cracker is adjusted to achieve a good shelling effect. During the impact of the palm kernels, the palm kernel shell explodes, thus obtaining a uniform palm kernel shell, and the integrity of the palm kernels is preserved. In addition, during the subsequent installation and commissioning of the cracker produced by Henan Glory Company, customers can adjust it to the appropriate spacing according to the volume of their own raw materials. More importantly, the shelling rate of this cracker can reach 95-98%.

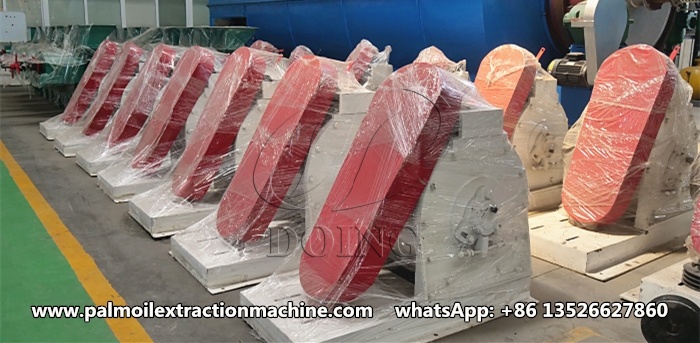

Palm kernel cracker

4.Wind Separation Column:

Next, the mixed palm kernel and palm kernel shell are transported to the bucket elevator through the winch, and then transported to the wind separation column for palm kernel-shell separation. The wind separation column can clearly see the palm kernel-shell separation process. It is also convenient to check whether the machine can operate normally at the same time.

5.Cyclone:

During the separation process of palm kernel and palm kernel shell, the palm kernel shell will enter the cyclone to form a gyratory downward force, and then fall back to avoid being pumped away by the fan and blocking the fan. Among them, the cyclone is connected to the blower to pump out air, and it is a cylindrical + cone design. In the centrifugal state, the different specific gravity of the palm kernel shell is used to achieve the separation effect. So far, according to the feedback data of our customers, the separation rate of our palm kernel cracker and shell separator can be as high as 99%. The ratio of palm kernel to shell is about 50%. If your raw material is 2 tons of palm kernels, you can get about 1 ton of palm nuts after processing by the palm kernel cracker and shell separator.

In short, if you want to crack and separate palm kernel and kernel shell quickly, you are welcome to choose the palm kernel cracker and shell separator of Henan Glory Oils & Fats Engineering Co., Ltd to meet your palm kernel cracking and separating needs. We can provide you with comprehensive palm kernel cracker and shell separator training and technical support services to ensure that you can efficiently operate and maintain your palm kernel cracker and shell separator and crack and separate palm kernel and kernel shell quickly.
